Configure Modes (Modes Editor)

Modified on Sat, Oct 25 at 10:32 PM

CAUTION: The modes that are built into HRD Logbook conform to the ADIF standards and the list of Modes accepted by the LOTW system. Any additions, modifications, or deletions to this list could result in mismatches in your awards tracking. HRD updates these modes as the ADIF standards or LOTW specifications change. They are automatically updated in HRD Logbook.

The sources for this are as follows:

ADIF Standards for Mode and Submode: https://www.adif.org/316/ADIF_316.htm#Mode_Enumeration

Modes accepted by LOTW: https://lotw.arrl.org/lotw-help/frequently-asked-questions/?lang=en#modes

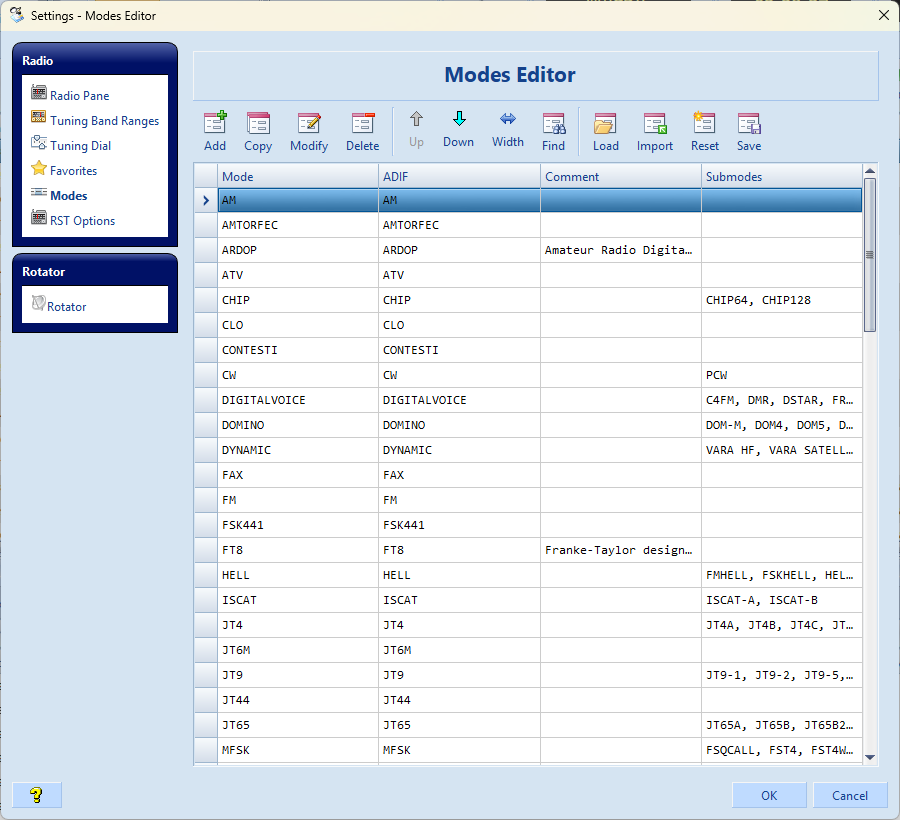

That said, should you find a need to modify the Modes, you can do so in the Modes Editor. You can reach this by Tools > Configure > Modes.

Here, you can Add, Copy, Modify, & Delete modes.

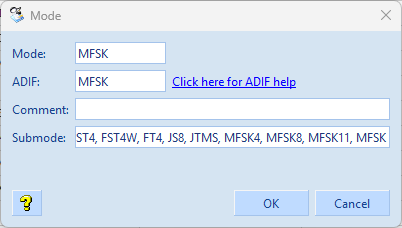

Let's select MFSK and click Modify to look at the modes for MFSK.

Here, we can see that MFSK has a number of "Submodes" that includes FT4, JS8, and several others.
