You can change the columns that are displayed in your log pane. Doing this enables you to have multiple layouts that you can use, depending on what you're trying to do.

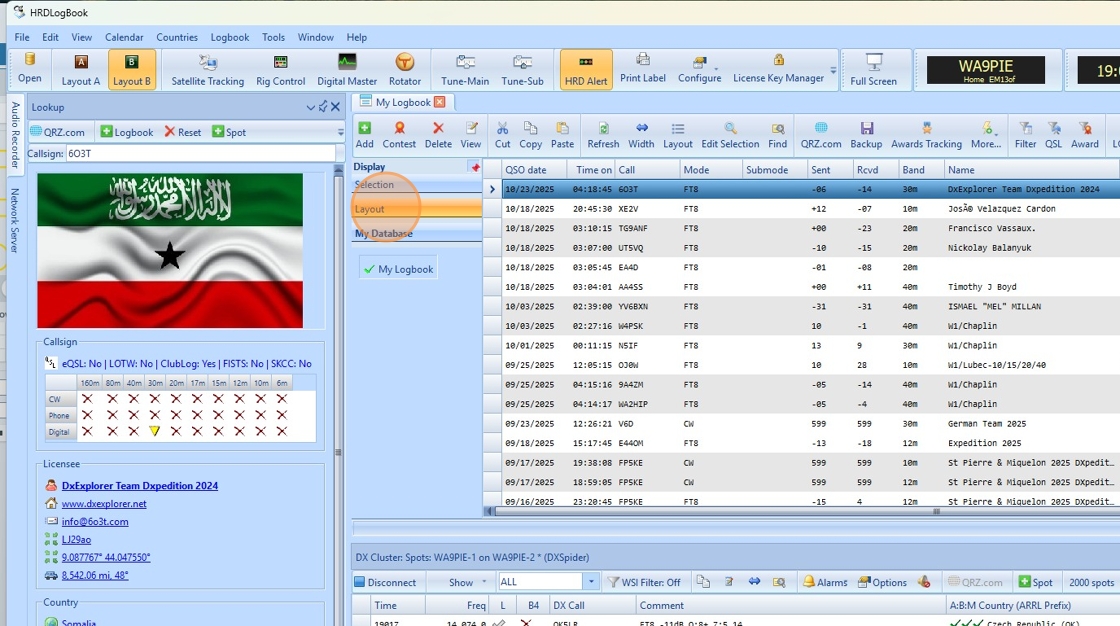

To modify the column layouts, click Tools > Configure > Logbook > Layouts

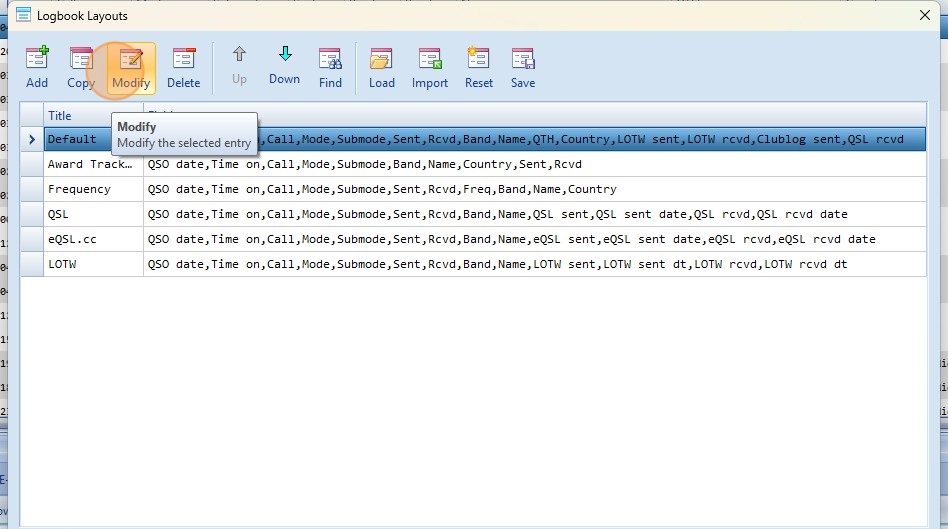

Here you can add, copy, modify, or delete layouts.

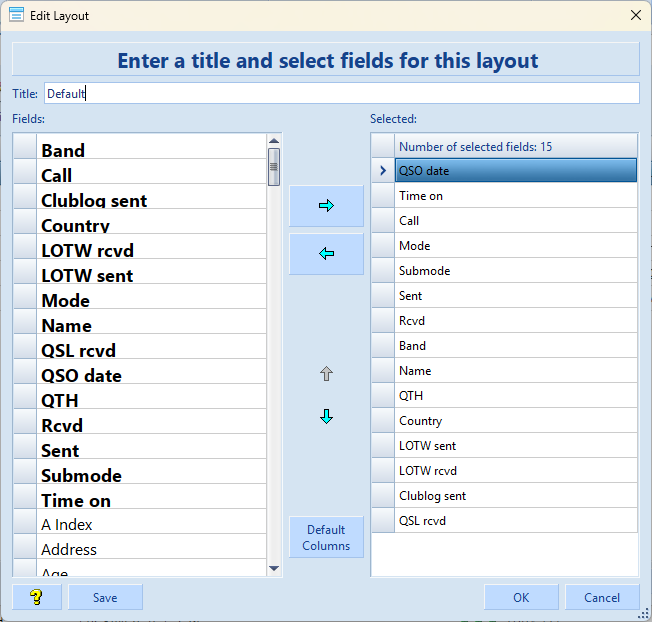

For example, the main log layout can be changed here to add, remove, or rearrange columns that are displayed.

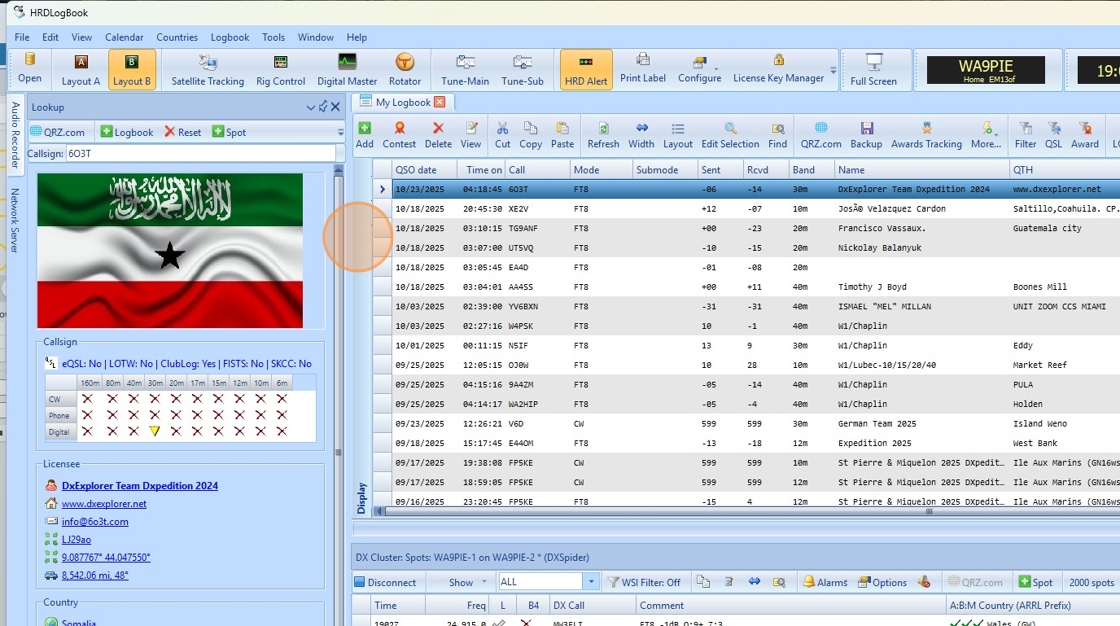

You can select from the layouts by clicking the vertical bar to the left of the log pane.

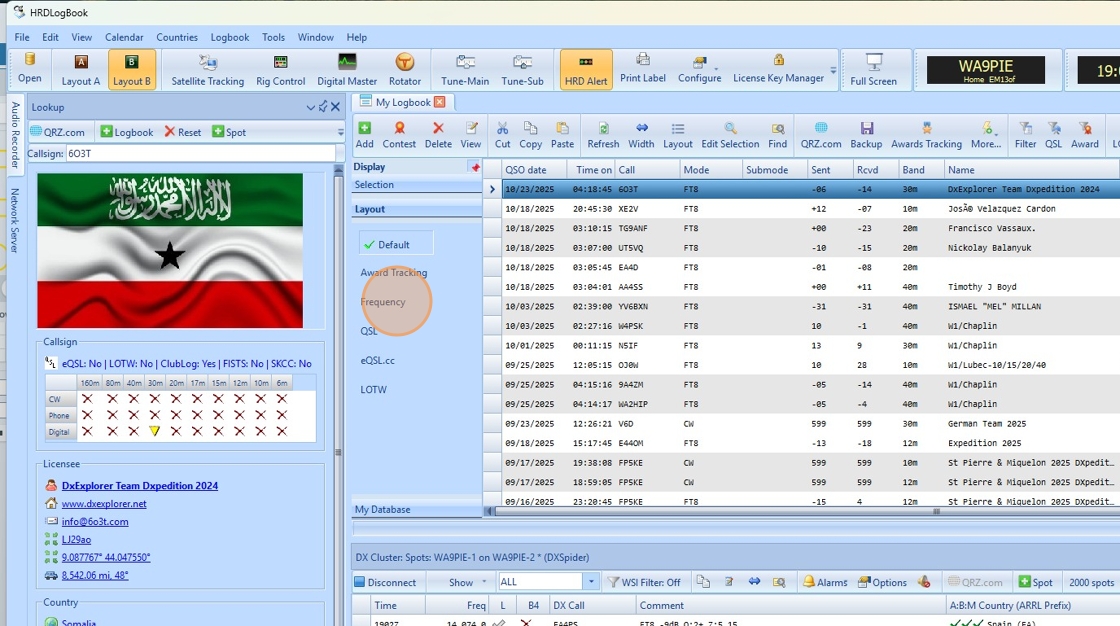

Then click the "Layout" section to display the available layouts.
In this case, I chose "Frequency"

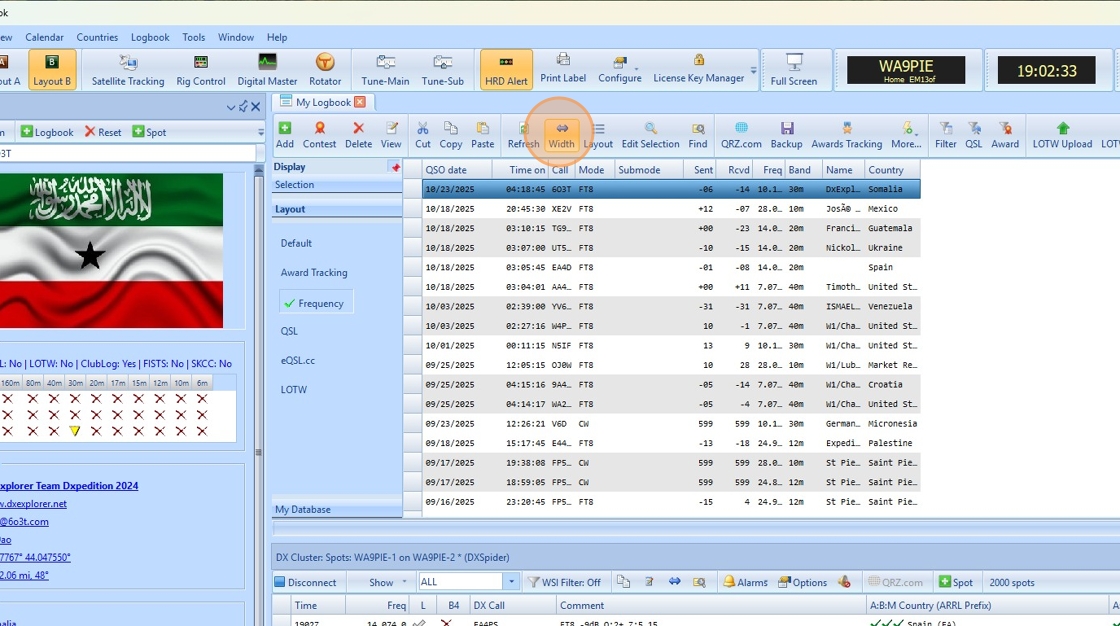

That layout is then displayed. You can auto-adjust widths by clicking the double-arrow button as shown here.
